MOTOR
Brose Drive-S 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
BATTERY
Fantic Integra, Lithium Ion, 36 Volt, 630Wh
DISPLAY
Brose-Marquardt multifunctional display & push-assistance selection unit

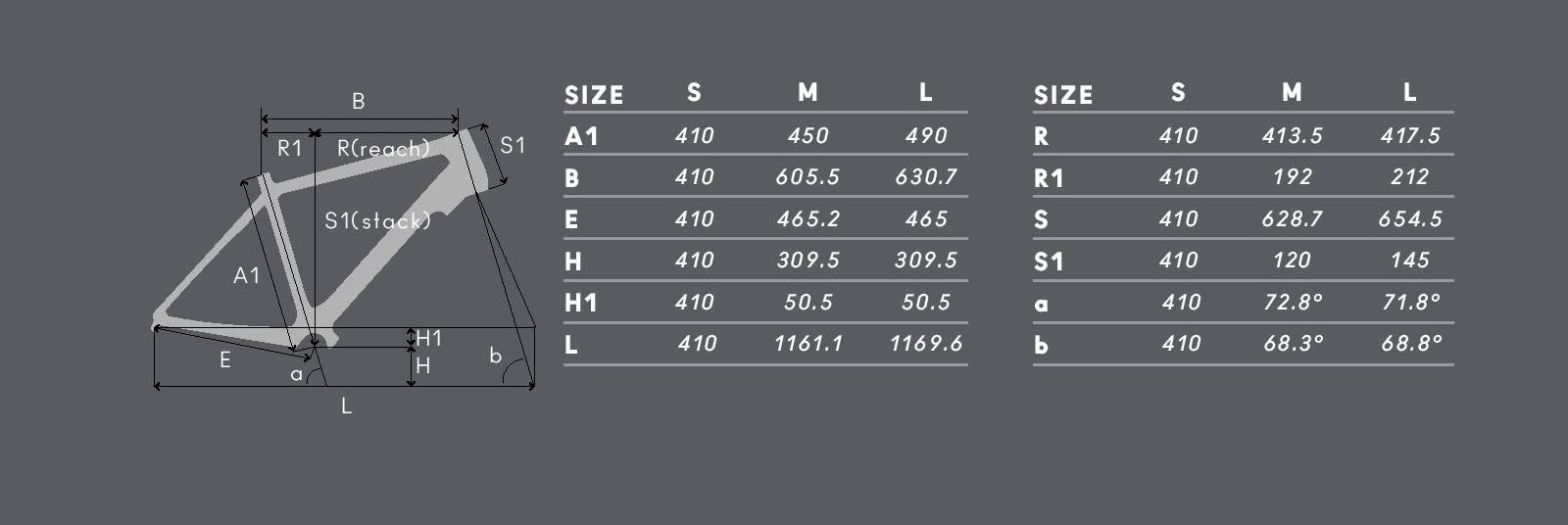

FRAME
Aluminium frame. Sizes: S - M - L
FORK
Suntour XCR 34 Aria, color custom, travel 100mm
GROUPSET
SRAM GX 10V e-click
CRANKSET
Miranda Delta Isis , Miche 38T
MOTOR PROTECTION
Motor flange integrated in the frame for full motor protection
CASSETTE
SRAM PG 1030 10-gear 11-36 teeth
CHAIN
KMC e-10v, e-bike edition
FRONT BRAKE
SRAM Level steel hydraulic 2P, 180mm disc
REAR BRAKE
SRAM Level steel hydraulic 2P, 160mm disc
TYRES
Schwalbe Super Moto X E50, 27.5 X 2.8”
RIMS & SPOKES
Aluminium, tubeless ready, Ø27.5 GPM by Fantic
FRONT HUB
SRAM, 110mm Boost
REAR HUB
SRAM, 148mm Boost
HANDLEBAR
FSA 720mm, rise 15 (custom)
STEM
FSA Varius ST, 100mm, regulated (custom)
SADDLE & GRIPS
Sporturer Talisman, Gel Flow / Sportourer Jammy Trekking
PEDALS
Aluminium
